RGBW DMX LED Festoon

  • √ 3D 360° LED Bulb
  • √ RGBW Full Color
  • √ Built-in DMX512
  • √ Static Colors Available
  • √ Pixel Mappable
  • √ Expandable String
  • √ Digitally Addressable
  • √ Unparallel Versatility

Brief Overview

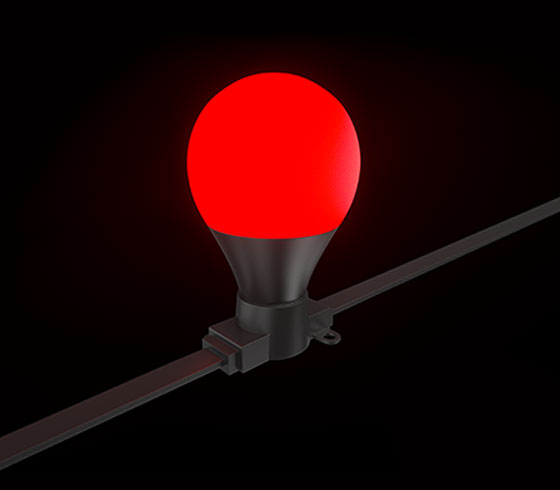

Digitally addressable festoon is a vintage and modern event lighting, adding full RGB or RGBW controlling by DMX, every single festoon bulb is pixel-mappable and controllable for programming creativities. Custom pixel pitch and expandable strand provide great possibilities to suit your needs.These generic string festoon lighting can be efficiently used to outline buildings, bridges, landscaping with captivating lighting effects.

Pixel Festoon.jpg

Specifications

Physical

Item Code

LI-DMXLF-D60-RGBW

Body Material

Injection molded PVC

Base Color

Black or white

Cable

6mm diameter PVC cable (black or white)

Inner Wire

Pure copper, 2*0.75mm2 + 3 x 0.3mm2

Net Dimension

60*53*96mm (2.36*2.07*3.54 inch)

Net Weight

80g (excl lead in & out)

Pixel Pitch

200mm (customization options available)

In/Out Lead

200mm (customization options available)

IP Rating

IP65

Max Qty/Strand

100

Other

Expandable string to form certain length
Optical

LED Source

6 x RGBW SMD5050 LED (white from 2,700k to 6,000k)

LED Lifetime

50,000 hours

Viewing Angle

360°
Electrical

Input Voltage

24V DC

Max Power

1.92W

Max Current

80mA

Electrical Safety

III
Photometric

Efficacy

RGBW: 32.9lm/W (R+G+B+Warm White)
RGBW: 33.1lm/W (R+G+B+Natural White)
RGBW: 33.7lm/W (R+G+B+Cool White)

Color Resolution

8-bit RGBW: 256⁴ = 4.294 trillion
16-bit RGBW: 65536⁴ = 18.4 quintillion
Control

DMX Pixel

1 x DMX RGBW pixel

DMX Channels

R/G/B/W 4 DMX channels

Max Qty/Universe

128 pixels

Protocol

USITT DMX512A 44F/S

Connection

Serial
Thermal

Operating Temperature

-40° to 50°

Storage Temperature

-50° to 80°

Humidity

98% max.

Cooling

Passive
