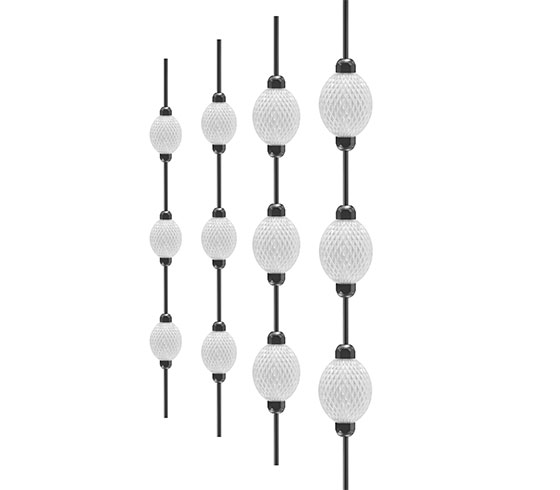

32mm & 50mm LED Pixel Ball

（Stripped Pineapple）

√ 3D 360° Inline Pixels
√ RGB Full Color
√ DMX Individually Controllable
√ 32mm&50mm Avaialble
√ Custom Pixel Pitch
√ Expandable String
√ Digitally Addressable
√ IP65 All-weather Technology

Info shortcuts

Brief Overview

The modern-day analysis of string lights with each ball consisting RGB led ball being individually controlled with DMX. It is designed to generate spectacular 2D or 3D dimensional lighting effect by adding elegant ornaments to your venue or event.

Pixel Ball 4 - 4.jpg

Specifications

Physical

Item Code

LI-DMX3DB-D32-SP (32mm)
LI-DMX3DB-D50-SP (50mm)

Body Material

Injection molded hollow PVC

Screw

M16 (black or white)

Cable

6mm diameter PVC (black or white)

Inner Wire

Pure copper, 2*0.75mm2 + 3*0.3mm2

Net Dimensions

32mm dia.: 32*43.8mm (1.26*1.72'')
50mm dia: 50*63.4mm (1.97*2.5'')

Net Weights

35mm: approx. 50g (excl lead in & out)
50mm: approx. 60g (excl lead in & out)

Pixel Pitch

150mm (customization options available)

In/ Out Lead

150mm (customization options available)

IP Rating

IP65

Max Qty/strand

Other

Expandable String to form certain length

Optical

LED Source

6 x RGB SMD3535 LED

LED Lifetime

50,000 hours

Viewing Angle

360°

Electrical

Input Voltage

24V DC

Max power

1.44W

Max current draw

60mA

Electrical Safety

III

Photometric

Efficacy

24lm/W

Color Resolution

8-bit RGB: 256³ = 16.7 million
16-bit RGB: 65536³ = 281.4 quadrillion

Control

DMX Pixels

1 x DMX RGB pixel

DMX Channels

R/G/B 3 DMX channels

Max Qty/Universe

170 pixels

Protocol

USITT DMX512A 44F/S

Connection

Parallel or serial

Address Setting

Digitally addressable

Thermal

Operating Temperature

-40° to 50°

Storage Temperature

-50° to 80°

Humidity

98% max.

Cooling

Passive

Downloads

Datasheet / Manual / Certificate

Datasheet - 32&50mm Pixel Ball.pdf
