RGBW Pixel Strip 32 Pixels

  • √ DMX512 Direct Control
  • √ RGBW Full Color
  • √ Digitally Addressable
  • √ Static Color Available
  • √ Pixel Mappable
  • √ Black or White PCB
  • √ IP20 or IP65
  • √ Durable, High Output
  • √ Customization Available
  • √ 1 LED as One Group

Brief Overview

Digitally addressable led pixel strip allows you to control every individual pixel independently by DMX, it adopts direct DMX512A signal. Should any chip fail, the signal is automatically bypass allowing the tape continue operating. 1 or 6 RGBW LEDs as one group to be technically done as 1 DMX pixel, providing you various options for different projects.The incredibly robust pixel tape is suitable for both interior and exterior lighting projects with its IP rating of IP20,IP65 and IP68.

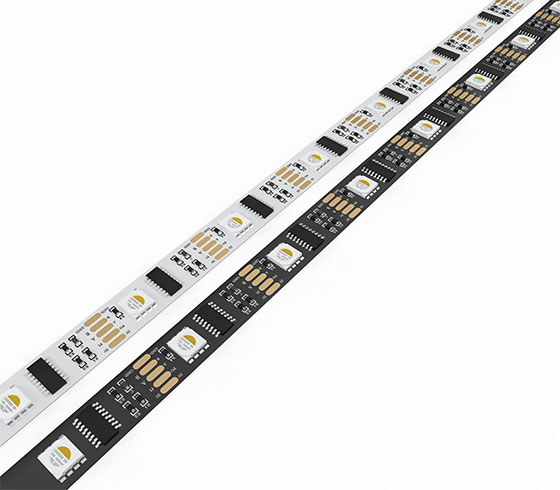

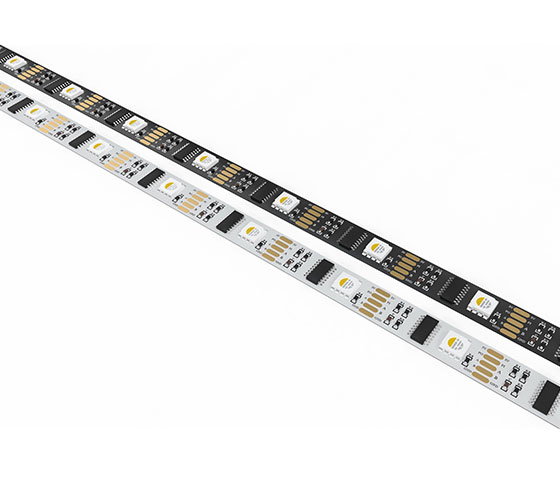

Pixel Strip 3.jpg

Specifications

Physical

Item Code

LI-DMXRGBWPS-D3232

Body Material

FPC, naked flex board (IP20)
FPC + Flex silicon tube (IP68)

Body Color

Black or white

In/Out Leader Cable

Flat PVC (black), 150mm (customization options available)

Inner Wire

Pure copper, 2 x 0.75mm2 + 3 x 0.3mm2

IP Rating

IP20 or IP65

Other

Customization options for tailored projects

Dimensions (IP20)

W12*H2*L4000mm

Dimensions (IP65)

W14*H4*L4000mm

Net Weights (IP20)

140g

Net Weights (IP65)

800g
Optical

LED Source

32 x RGBW SMD5050 LEDs per meter

LED Pitch

31.25mm

Pixel Pitch

31.25mm

LED Lifetime

50,000 hours

Viewing Angle

120°
Electrical

Input Voltage

5V DC

Max Power

12.8W

Max Current

2560mA

Electrical Safety

III
Photometric

Efficacy

44.81lm/W (R+B+G+Warm White)
45.62lm/W ((R+B+G+Neutral White)
47.76lm/W (R+B+G+Coll White)

Color Resolution

8-bit RGBW: 256⁴ = 4.294 trillion
16-bit RGBW: 65536⁴ = 18.4 quintillion
Control

DMX Pixel/m

32 x DMX RGBW pixels

DMX Channels/m

128 x DMX channels

Max Qty/Universe

4m

Protocol

USITT DMX512A 44F/S

Connection

Serial or parallel

Address Setting

Digitally Addressable
Thermal

Operating Temperature

-40° to 50°

Storage Temperature

-50° to 80°

Humidity

98% max.

Cooling

Passive
