270° LED Neon Flex

  • √ Flexible Neon Flex
  • √ RGB Full Color
  • √ SPI Protocol
  • √ Static color available
  • √ Pixel Mappable
  • √ Silicon Body
  • √ No Dark Spot
  • √ No Pixelation
  • √ UV & Flame Resistant
  • √ IP65 All-weather Lighting

Brief Overview

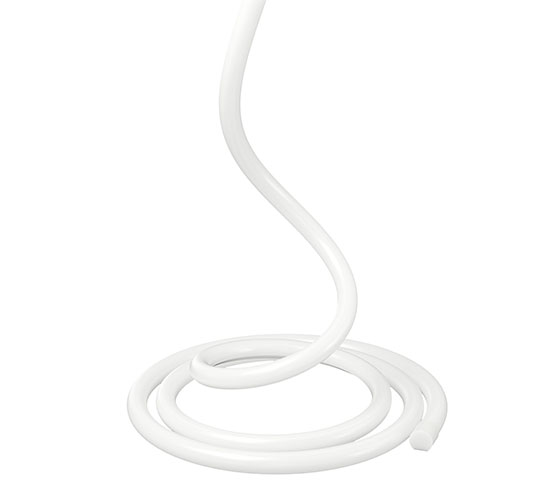

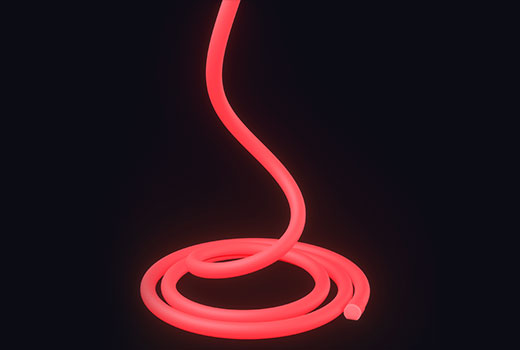

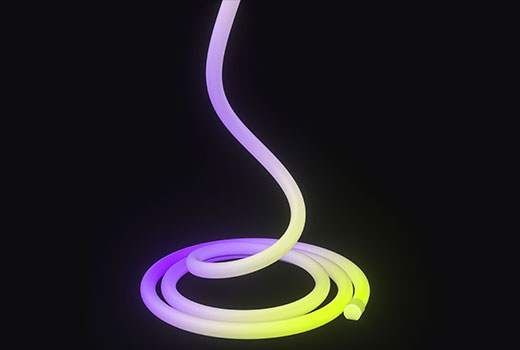

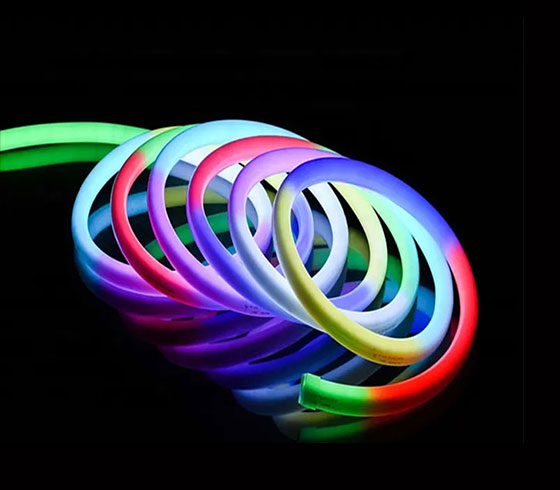

This LED Neon Flex offers 270° even illumination in a 25mm diameter tube, IP65 rating makes it suitable for both indoor uses and outdoor uses. It adopts 84 SMD RGB LEDs per meter, 6 LEDs as one group makes it 14 pixels every meter, providing even lighting output without any spot or pixelation with a fully diffused silicon flex tube. RGB LEDs brings up to 16 million color combinations, any preferrable color or lighting effect can be programmed by SPI.

360 Neon Flex.jpg

Specifications

Physical

Item Code

LI-LEDNF-D22-270°

Body Material

Silicon

In/Out Lead

150mm (customization options available)

Inner Wire

2 x 1mm2 + 2 x 0.3mm2

Bending

Horizontal bending

IP Rating

IP65

Dimension

D22*5000mm

Net Weight

2000G

Other

Customization options for length
Optical

LED Source

84 x RGB SMD5050 LED per meter

LED Pitch

11.90mm

Pixel Pitch

71.43mm

LED Lifetime

50,000 hours

Viewing Angle

270°
Electrical

Input Voltage

24V DC

Max Power

20.16W per meter

Max Current

840mA per meter

Electrical Safety

III
Photometric

Efficacy

26lm/W

Color Resolution

8-bit RGB: 256³ = 16.7 million
16-bit RGB: 65536³ = 281.4 quadrillion
Control

SPI Pixel

14 x SPI RGB pixel per meter

SPI Channels

42 x SPI channels per meter

Max Qty/Universe

35m around

Protocol

SPI Protocol

Connection

Serial
Thermal

Operating Temperature

-40° to 50°

Storage Temperature

-50° to 80°

Humidity

98% max.

Cooling

Passive
