RGBW DMX Neon Flex (Dome Top)

  • √ Flexible Neon Flex
  • √ RGB/RGBW Full Color
  • √ Built-in DMX512
  • √ Static color available
  • √ Pixel Mappable
  • √ Silicon Body
  • √ No Dark Spot
  • √ No Pixelation
  • √ Digitally Addressable
  • √ UV & Flame Resistant
  • √ Custom Length Available
  • √ IP65 All-weather Lighting

Brief Overview

The pixel neon flex is designed to control every addressable pixel, making it easier for pixel mapping and programming creativities. LED Neon Flex provides incredibly vivid color transitions by using sophisticated DMX and led dimming technology. It is flicker free in any color and any sequence to light up the mood of your projects without limit. Pixel neon flex can be manufactured to any custom required lengths to suit your needs.

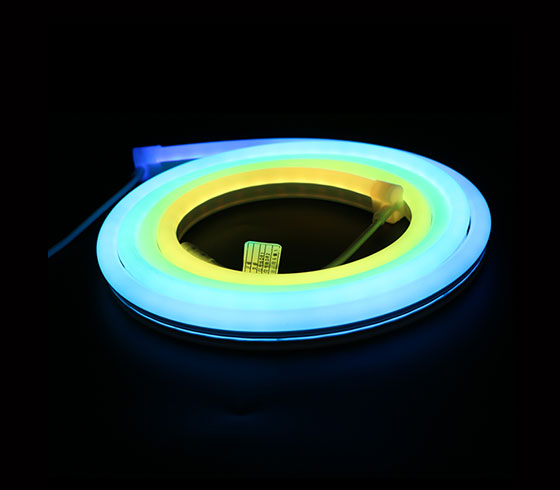

Dome Neon Flex.jpg


Specifications

Physical

Item Code

LI-DMXNF-RGBW-P6010-DT

Body Material

Silicon

Top

Dome

Cable

6mm diameter PVC cable (black or white)

Inner Wire

Pure copper, 2 x 1mm2 + 3 x 0.3mm2

In/Out Lead

15cm (customization options available)

Bending

Horizontal bending

IP Rating

IP65

Dimension

13*23*5000mm

Net Weight

1460g

Other

Customization options for length, LED quantity, DMX CH quantity
Optical

LED Source

60 x RGBW SMD5050 LED

LED Pitch

16.67mm

Pixel Pitch

100mm

LED Lifetime

50,000 hours

Viewing Angle

270°
Electrical

Input Voltage

24V DC

Max Power

19.2W

Max Current

800mA

Electrical Safety

III
Photometric

Efficacy

RGBW: 33.2lm/W (R+G+B+Warm White)
RGBW: 33.9lm/W (R+G+B+Natural White)
RGBW: 34.6lm/W (R+G+B+Cool White)

Color Resolution

8-bit RGBW: 256⁴ = 4.294 trillion
16-bit RGBW: 65536⁴ = 18.4 quintillion
Control

DMX Pixel

10 x DMX RGBW pixel per meter

DMX Channels

40 x DMX channels per meter

Max Qty/Universe

12.8m

Protocol

USITT DMX512A 44F/S

Connection

Serial or parallel

Address Setting

Digitally Addressable
Thermal

Operating Temperature

-40° to 50°

Storage Temperature

-50° to 80°

Humidity

98% max.

Cooling

Passive
