0.5m DMX Neon Tube

  • √ 3D 360° LED Tube
  • √ RGB Full Color
  • √ Built-in DMX512
  • √ Milky LED Tube
  • √ Pixel Mappable
  • √ Standing LED Tube
  • √ Digitally Addressable
  • √ Suspended LED Tube
  • √ Custom Length Available
  • √ IP65 All-Weather Lighting

Brief Overview

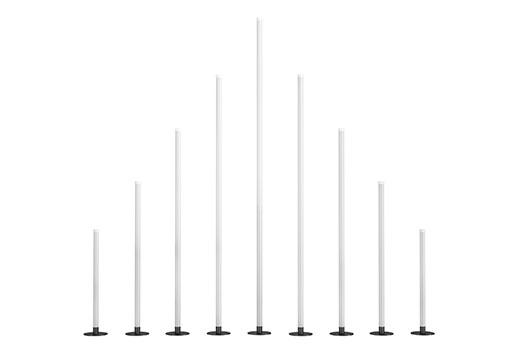

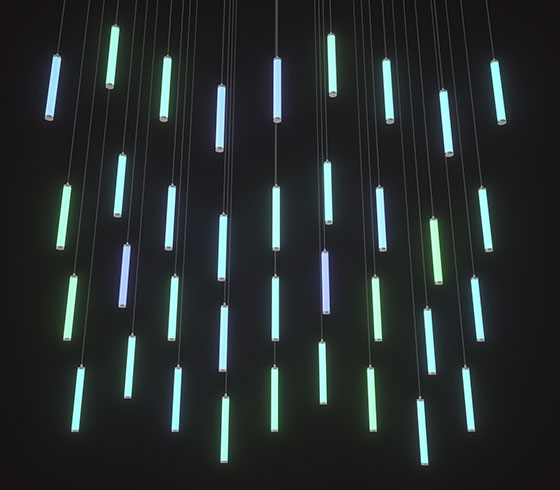

The 360° efficient DMX neon tube offers you magical ways in use like vertical/horizontal hanging, floor standing as well as surface mounting. Available in times of 0.25m and up to 2m, providing you a wide range of selections for any commercial or entertainment illumination.

Neon Tube 3.jpg

Specifications

Physical

Item Code

LI-DMXNT-D6010

Body Material

Milky white PVC

End Cap

Metal/Plastic

Cable

6mm diameter PVC cable (black or white)

Inner Wire

Pure copper, 2*1mm2 + 2 x 0.3mm2

Incoming Lead

150mm (customization options available)

IP Rating

IP65

Dimension

L525*D40mm

Net Weight

300g

Standing Plate

Metal with black coating, 730g

Usage

Vertical/Horizontal hanging, standing and surface mounting

Other

0.25m as a section, times of 0.25m available
Customization options for tailored length available.
Optical

LED Source

60 x RGB SMD5050 LEDs

LED Pitch

16.67mm

Pixel Pitch

50mm

LED Lifetime

50,000 hours

Viewing Angle

360°
Electrical

Input Voltage

24VDC

Max Power

14.4W

Max Current

600mA

Electrical Safety

III
Photometric

Efficacy

19lm/W

Color Resolution

8-bit RGB: 256³ = 16.7 million
16-bit RGB: 65536³ = 281.4 quadrillion
Control

DMX Pixels

10 x RGB pixels

DMX Channels

30 x DMX channels

Max Qty/Universe

17 tubes

Protocol

USITT DMX512A 44F/S

Connection

Parallel and serial

Address Setting

Digitally addressable
Thermal

Operating Temperature

-40° to 50°

Storage Temperature

-50° to 80°

Humidity

98% max.

Cooling

Passive
