Brief Overview

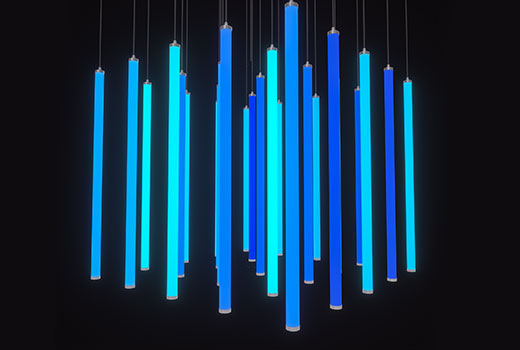

The 360° efficient DMX neon tube offers you magical ways in use like vertical/horizontal hanging, floor standing as well as surface mounting. Available in times of 0.25m and up to 2m, providing you a wide range of selections for any commercial or entertainment illumination.

Neon Tube 3.jpg

Specifications

Physical

Item Code

LI-DMXNT-D12020

BodyMaterial

Milky white PVC

End Cap

Metal/Plastic

Cable

6mm diameter PVC cable (black or white)

Inner Wire

Pure copper, 2*1mm2 + 2 x 0.3mm2

Incoming Lead

150mm (customization options available)

IP Rating

IP65

Dimension

L1025*D40mm

Net Weight

550g

Standing Plate

Metal with black coating, 730g

Usage

Vertical/Horizontal hanging, standing and surface mounting

Other

0.25m as a section, times of 0.25m available
Customization options for tailored length available.

Optical

LED Source

120 x RGB SMD5050 LEDs

LED Pitch

16.67mm

Pixel Pitch

50mm

LED Lifetime

50,000 hours

Viewing Angle

360°

Electrical

Input Voltage

24VDC

Max Power

28.8W

Max Current

1200mA

Electrical Safety

III

Photometric

Efficacy

19lm/W

Color Resolution

8-bit RGB: 256³ = 16.7 million
16-bit RGB: 65536³ = 281.4 quadrillion

Control

DMX Pixels

20 x RGB pixels

DMX Channels

60 x DMX channels

Max Qty/Universe

8 tubes

Protocol

USITT DMX512A 44F/S

Connection

Parallel and serial

Address Setting

Digitally addressable

Thermal

Operating Temperature

-40° to 50°

Storage Temperature

-50° to 80°

Humidity

98% max.

Cooling

Passive

Downloads

Datasheet / Manual / Certificate

Datasheet - DMX Neon Tube.pdf

Illustrations

Wiring Diagrams

Wiring Diagram - 1m DMX Neon Tube.pdf

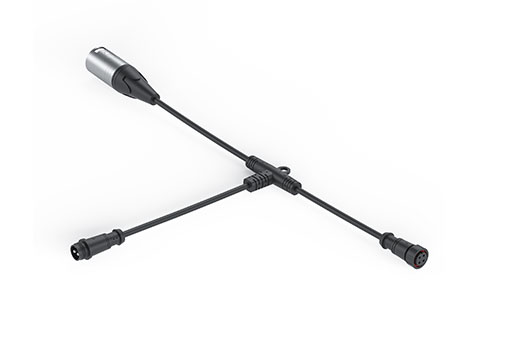

Accessories
