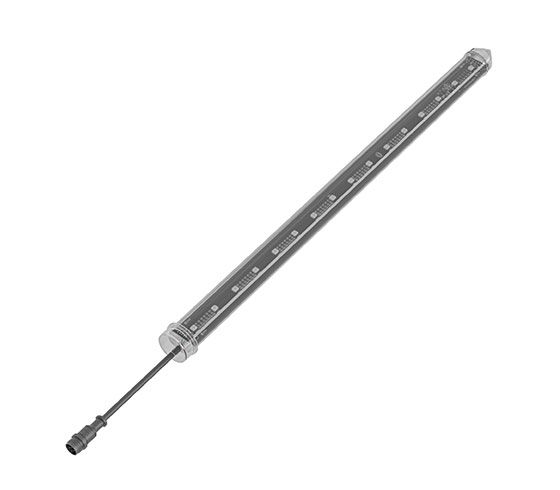

0.5m 3D LED Pixel Tube

  • √ 3D 360° LED Tube
  • √ RGB Full Color
  • √ Built-in DMX512
  • √ Pixel Mappable
  • √ Digitally Addressable
  • √ Transparent LED Tube
  • √ Custom Length Available
  • √ IP65 All-weather technology

Brief Overview

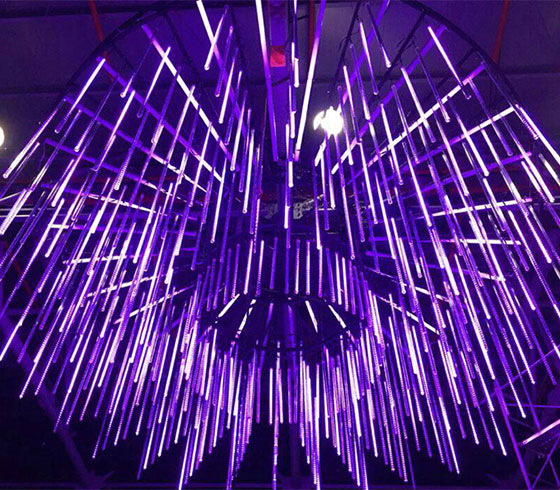

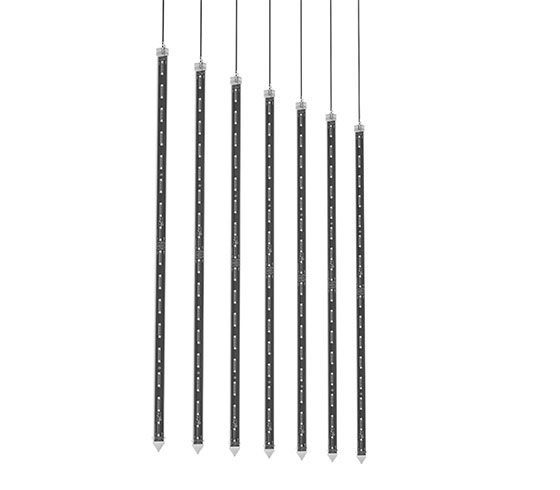

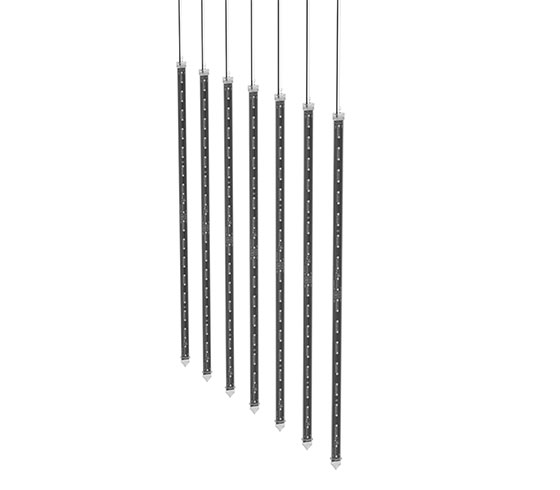

The 3D LED pixel tube is designed to generate dynamic and stunning visual effects for stage and entertainment illuminations.  Every individual DMX pixel is fully organized for pixel mapping and media programming, attractive 3D spatial effects can be easily achieved by using numerous 360° viewing angle RGB led pixel tubes.These IP65 pixel tubes adopt 30mm diameter fully transparent housing, 4 regular lengths (.5m, 1m, 1.5m and 2m) to meet various demands, you can also expect tailored lengths for both indoor or outdoor applications.

LED Pixel Tube 3 - 1.jpg

Specifications

Physical

Item Code

LI-DMX3DT-D3208

Body Material

Transparent PVC

Cable

6mm dia. PVC (black or white)

Inner Wire

Pure copper, 2*0.1mm2 + 2*0.3mm2

Incoming Lead

150mm (customization options available)

IP Rating

IP65

Dimension

L500 x D30mm

Net Weight

100g

Mounting Accessory

Metal hook

Other

Spacing from one tube to the next 30cm or customized
Optical

LED Source

32 x RGB SMD5050 LEDs

Pixel Pitch

62.5mm

LED Lifetime

50,000 hours

Viewing Angle

360°
Electrical

Input Voltage

24V DC

Max Power

12W

Max Current

500mA

Electrical Safety

III
Photometric

Efficacy

25lm/W

Color Resolution

8-bit RGB: 256³ = 16.7 million
16-bit RGB: 65536³ = 281.4 quadrillion
Control

DMX Pixels

8 x DMX RGB pixels

DMX Channels

24 x DMX Channels

Max Qty/Universe

21 tubes

Protocol

USITT DMX512A 44F/S

Connection

Parallel

Address Setting

Digitally addressable
Thermal

Operating Temperature

-40° to 50°

Storage Temperature

-50° to 80°

Humidity

98% max.

Cooling

Passive
