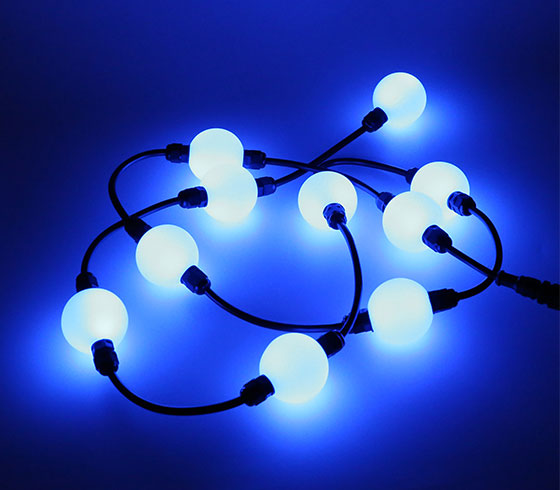

50mm Frosted LED Pixel Ball

（Solid Acrylic Diffuser）

√ 3D 360° Inline Pixels
√ RGB/W Full Color
√ DMX Individually Controllable
√ Expandable String
√ Custom Pixel Pitch
√ Frosted Acrylic Enclosure
√ Digitally Addressable
√ Silver Electroplating Available
√ IP65 All-weather Technology
√ Gold Electroplating Available

Info shortcuts

Brief Overview

The modern-day analysis of string lights with each ball consisting RGB or RGBW led ball being individually controlled with DMX. It is designed to generate spectacular 2D or 3D dimensional lighting effect by adding elegant ornaments to your venue or event.

Pixel Ball 2 - 2.jpg

Specifications

Physical

Item Code

LI-DMX3DB-D0401-RGB (RGB Version)
LI-DMX3DB-D0401-RGBW (RGBW Version)

Body Material

Injection molded acrylic, solid frosted white

Screw

M16 (black/white)

Cable

6mm diameter PVC cable (black or white)

Inner Wire

Pure copper, 2*1mm2 + 2 x 0.3mm2

Net Dimension

50*47.2mm (1.97*1.7'' )

Net Weight

Approx. 100g (excl lead in & out)

Pixel Pitch

150mm (customization options available)

In/Out Lead

150mm (customization options available)

IP Rating

IP65

Max Qty/Strand

Other

Expandable to form certain length

Optical

LED Source

4 x RGB 5050 LED
4 x RGBW 5050 LED, W can be warm/natural/cool white

Viewing Angle

360°

Electrical

Input Voltage

15 VDC

Max Power

0.9W (RGB)
1.2W (RGBW)

Max Current draw

60mA (RGB)
80mA (RGBW)

Electrical Safety

III

Photometric

Efficacy

RGB: 17lm/W
RGBW: 32.9lm/W (R+G+B+Warm White)
RGBW: 33.1lm/W (R+G+B+Natural White)
RGBW: 33.7lm/W (R+G+B+Cool White)

Color Resolution

8-bit RGB: 256³ = 16.7 million
16-bit RGB: 65536³ = 281.4 quadrillion
8-bit RGBW: 256⁴ = 4.294 trillion
16-bit RGBW: 65536⁴ = 18.4 quintillion

Control

Pixel Qty

1 x DMX RGB pixel (RGB)
1 x DMX RGWB pixel (RGBW)

DMX Channels

R/G/B 3 DMX channels (RGB)
R/G/B/W 4 DMX channels (RGBW)

Max Qty/Universe

170 pixels (RGB)
128 pixels (RGBW)

Protocol

USITT DMX512A 44F/S

Connection

Parallel or serial

Thermal

Operating Temperature

-40° to 50°

Storage Temperature

-50° to 80°

Humidity

98% max.

Cooling

Passive

Downloads

Datasheet / Manual / Certificate

Datasheet - 50mm Pixel Ball.pdf
