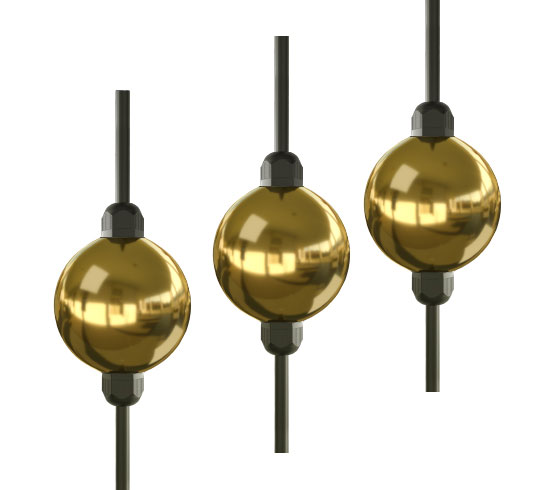

50mm Golden LED Pixel Ball

（Solid Acrylic Diffuser with Gold Coating）

√ 3D 360° Inline Pixels
√ RGB/W Full Color
√ DMX Individually Controllable
√ Gold Electroplated Coating
√ Custom Pixel Pitch
√ Digitally Addressable

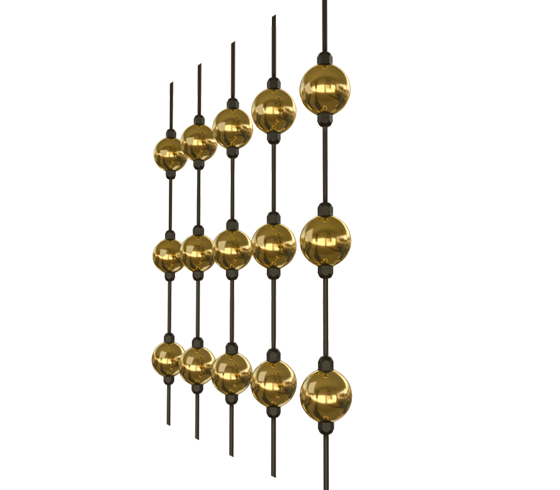

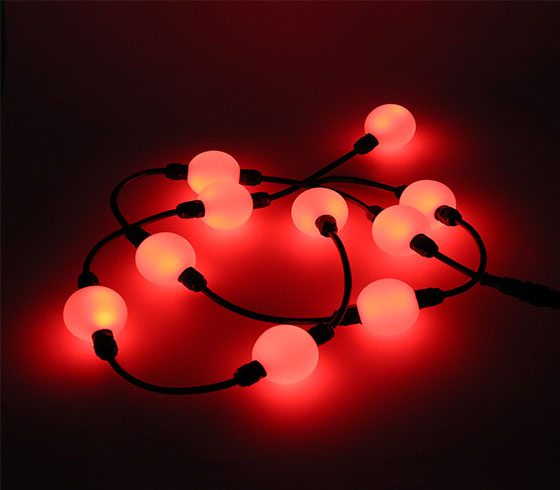

√ Expandable String
√ IP65 All-weather Technology

Info shortcuts

Brief Overview

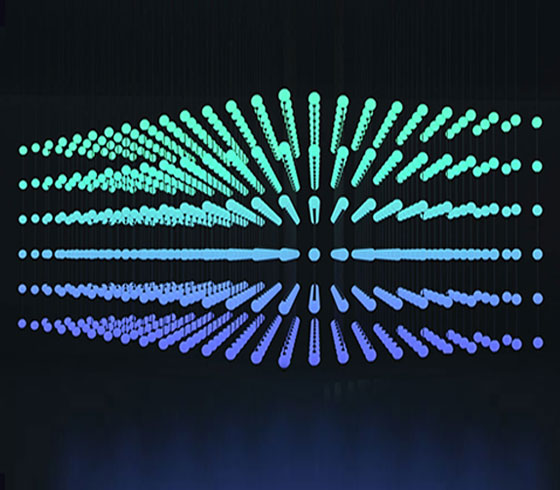

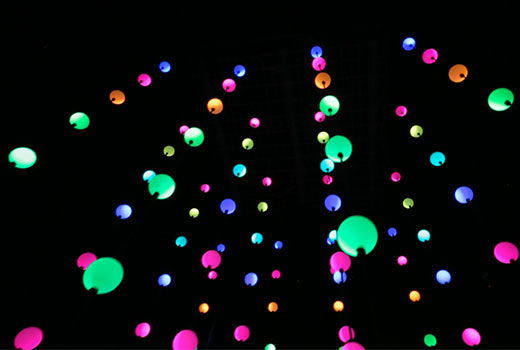

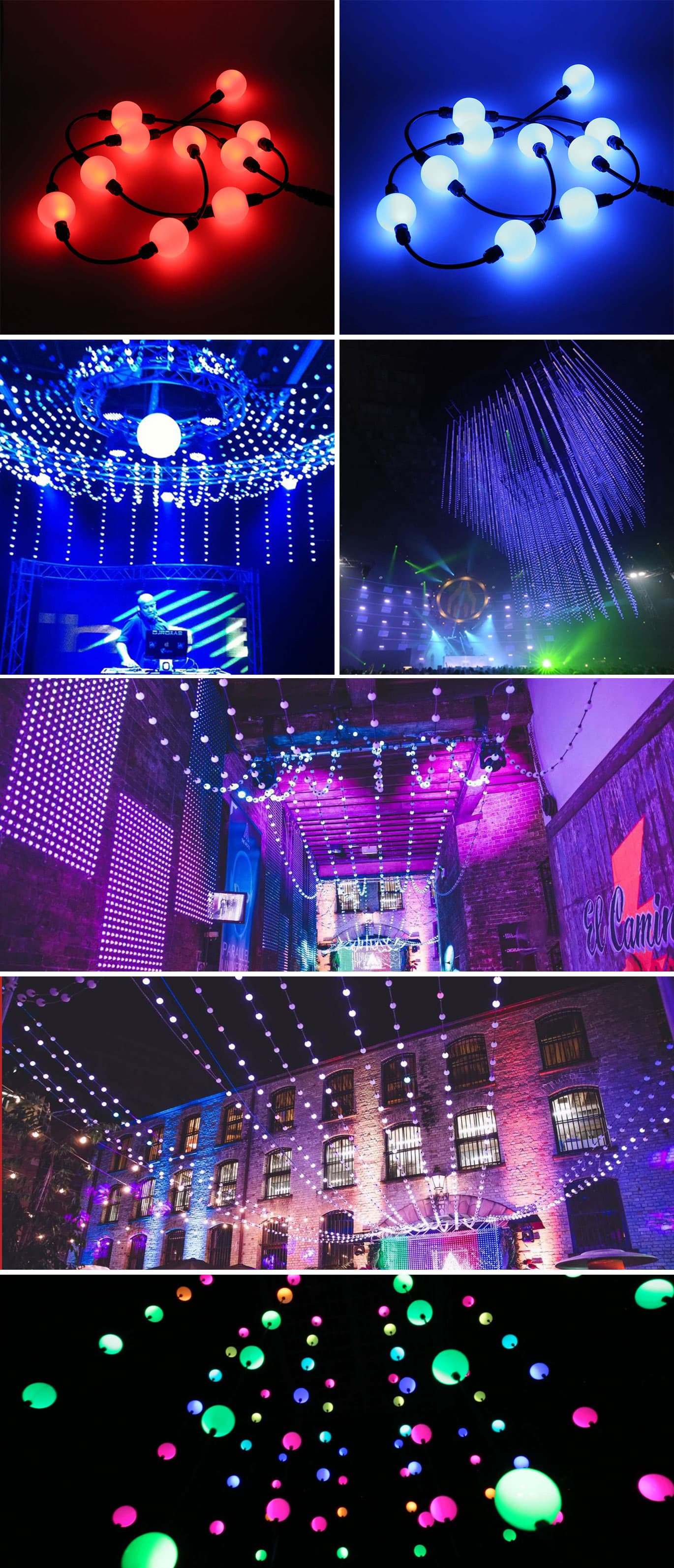

The modern-day analysis of string lights with each ball consisting RGB or RGBW led ball being individually controlled with DMX. It is designed to generate spectacular 2 or 3 dimensional lighting effect by adding elegant ornaments to your venue or event.

Pixel Ball 2 - 2.jpg

Specifications

Physical

Item Code

LI-DMX3DB-D0401-RGB-G (RGB Version)
LI-DMX3DB-D0401-RGBW-G (RGBW Version)

Body Material

Injection molded acrylic, gold coating

Screw

M16 (black/white)

Cable

6mm diameter PVC cable (black or white)

Inner Wire

Pure copper, 2*1mm2 + 2 x 0.3mm2

Net Dimension

50*47.2mm (1.97*1.7'' )

Net Weight

Approx. 100g (excl lead in & out)

Pixel Pitch

150mm (customization options available)

In/Out Lead

150mm (customization options available)

IP Rating

IP65

Max Qty/Strand

Other

Expandable to form certain length

Optical

LED Source

4 x RGB 5050 LED
4 x RGBW 5050 LED, W can be warm/natural/cool white

Viewing Angle

360°

Electrical

Input Voltage

15 VDC

Max Power

0.9W (RGB)
1.2W (RGBW)

Max Current draw

60mA (RGB)
80mA (RGBW)

Electrical Safety

III

Photometric

Efficacy

RGB: 17lm/W
RGBW: 32.9lm/W (R+G+B+Warm White)
RGBW: 33.1lm/W (R+G+B+Natural White)
RGBW: 33.7lm/W (R+G+B+Cool White)

Color Resolution

8-bit RGB: 256³ = 16.7 million
16-bit RGB: 65536³ = 281.4 quadrillion
8-bit RGBW: 256⁴ = 4.294 trillion
16-bit RGBW: 65536⁴ = 18.4 quintillion

Control

Pixel Qty

1 x DMX RGB pixel (RGB)
1 x DMX RGWB pixel (RGBW)

DMX Channels

R/G/B 3 DMX channels (RGB)
R/G/B/W 4 DMX channels (RGBW)

Max Qty/Universe

170 pixels (RGB)
128 pixels (RGBW)

Protocol

USITT DMX512A 44F/S

Connection

Parallel or serial

Thermal

Operating Temperature

-40° to 50°

Storage Temperature

-50° to 80°

Humidity

98% max.

Cooling

Passive

Downloads

Datasheet / Manual / Certificate

Datasheet - 50mm Pixel Ball (Solid Frosted Diffuser).pdf

Illustrations

Wiring Diagrams
